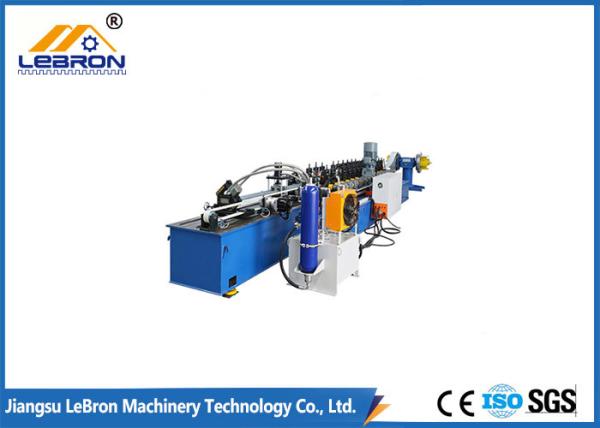

Panasonic PLC Control Automatic C Z Purlin Roll Forming Machine High Speed
1. Description of c purlin roll forming machine
C purlin production process: use the steel strip as the raw material, by the processes such as Leveling, Rolling, Punching, standard length Cutting, etc. become the final product. It can be used for the major stress structure of the large and middle-sized industrial constructions and civilian constructions. The roof load-bearing and wall panel supporting the plants, warehouses, engine houses, hangars, exhibition halls, cinemas, gymnasiums, fair flower stands, etc.
C purlin rolling mill is a kind of equipment for continuous production of C-type channel steel by feeding, punching, bending, cutting, and other processes with galvanized or cold rolled steel strip.
The main components of C-channel rolling forming machine include manual decoiler (capacity 3 tons), feeding guide rail of different sizes of materials, leveling device, front hydraulic punching of holes or grooves on flange, rolling forming parts, back hydraulic punching of holes or grooves on Web, hydraulic cutting machine, PLC control cabinet, and hydraulic oil pump.
2. Main Technical Parameters
| No. | Item | Description |
| 1 | Machine Size | 5000mm*1000mm*1200mm |
| 2 | Machine Weight | Approx 10 Tons |
| 3 | Suitable Material | Galvanized Steel Coil |
| 4 | Thickness | 0.6-2.0mm |
| 5 | Feeding Width | About 3/4/6/8 inches |
| 6 | Effective Width | About 187/212/263/314mm |
| 7 | Main Power | 18.5Kw |
| 8 | Hydraulic Power | 4.0Kw |
| 9 | Roller | Cr12MoV steel. Vacuum Quenching. HRC60~62 degree |
| 10 | Roller Station | 14 stations |
| 11 | Shaft Material | 40Cr steel. CNC lathe, heat-treatment, coat hard chrome |
| 12 | Drive Mode | Chain |
| 13 | Forming Speed | Over 80m/min |
| 14 | Voltage | 380V/50Hz/3Ph (can custom) |
3. Our Advantages
Our factory has more than 10 years of working experience in researching and selling. Products are well sailed all over the world, got many compliments from customers.
1). Germany COPRA software design
2). 5 engineers with more than 20 years of experience
3). 15 professional technician
4). 11 sets advanced CNC production lines on site
5). Passionate Team
6). Installation engineers can reach your factory within 6 days
7). 2 years maintenance and whole life technical support
4. FAQ
Q1. What is your advantage?
A1: We have over 11 years of experience in roll-forming machine production. Experienced engineers and workers will be helpful for quality control.
Q2. Do you have after-sales support?
A2: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers' specifications, using top brand components.
Q4. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. We have rich experience in transporting.
Q5. How to visit your company?
A5: 1). Fly to Wuxi airport, we will pick you up.
2). Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao railway station to Wuxi railway station, then we can pick you up.
